Onyx UV lamp GPH846T5L GPH436T5L GPH287T5L G36T5L G48T5L GPH1554T5L GPH1148T5L GPH1154T6L Fresh-Aire Blue-Tube UV lamp
  Go Back
G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L NameŠU QUARTZ ULTRAVIOLET LAMP (GPH)
Model No.ŠU G4T5L/DE2P
Brand NameŠUUV LAMP
Country of OriginŠU China



G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L

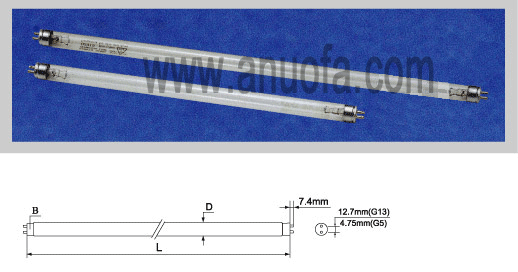

Table 1 - Slim-line Double Ended 2 Pin Germicidal Lamps

Lamp Models Lamp Watts Dimension (mm) Cap Lamp Voltage Lamp Current UV Output  Useful Life
Ozone Free Ozone Producing W Length (L) Diameter (D) (B) V@50Hz mA Watts W @1m mw/cm3 Hour
G4T5L/DE2P G4T5VH/DE2P 4 135 15 G5 24 160 0.9 10 6000
G6T5L/DE2P G6T5 VH /DE2P 6 212 15 G5 48 160 1.7 12 8000
G8T5L/DE2P G8T5 VH /DE2P 8 288 15 G5 64 190 2.5 16 8000
G10T5L/DE2P G10T5 VH /DE2P  10 331 15 G13 70 220 2.7 20 8000
G15T5L/DE2P G15T5 VH /DE2P 15 437 15 G13 71 300 4.9 30 8000
G15T6L/DE2P G15T6 VH /DE2P 15 437 19 G13 71 300 4.9 30 8000
G20T5L/DE2P G20T5 VH /DE2P 20 589 15 G13 84 320 7.5 60 8000
G20T6L/DE2P G20T6 VH /DE2P 20 589 19 G13 91 320 7.5 60 8000
G30T5L/DE2P G30T5 VH /DE2P 30 894 15 G13 125 300 13.5 90 8000
G30T6L/DE2P G30T6 VH /DE2P 30 894 19 G13 125 300 13.5 90 8000
G30T8L/DE2P G30T8 VH /DE2P 30 894 25 G13 125 300 13.5 90 8000
G36T5L/DE2P G36T5 VH /DE2P 39 842 15 G13 103 440 15.3 93 8000
G40T5L/DE2P G40T5 VH /DE2P 40 1199 15 G13 130 330 16 100 8000
G40T6L/DE2P G40T6 VH /DE2P 40 1199 19 G13 130 330 20 100 8000
G40T8L/DE2P G40T8 VH /DE2P 40 1199 25 G13 130 330 20 100 8000
G55T8L
/HO/DE2P
G55T8 VH /HO/DE2P 55 893 25 G13 83 770 18 150 8000
G64T6L/DE2P G64T6 VH /DE2P 65 1553.6 15 G13 220 425 20 200 8000
G75T8L/DE2P G75T8 VH /DE2P 75 1199 25 G13 108 840 25.5 180 8000
G67T5L/DE2P G67T5 VH /DE2P 79 1629.8 15 G13 238 425 26 205 8000
G36T5L/
HO/DE2P
G36T5 VH /HO/DE2P 85-105 842.44 15 G13 120 800-1000 27-34 250-280 8000
G115T12L/
VHO/DE2P
G115T12L/VHO/DE2P 115 1199 36 G13 92 1100 39 300 5000
G64T5L/
VHO/DE2P
G64T5 VH /VHO/DE2P 155-195 1553.6 15 G13 220 100-1000 45-58 380-485 5000


G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L

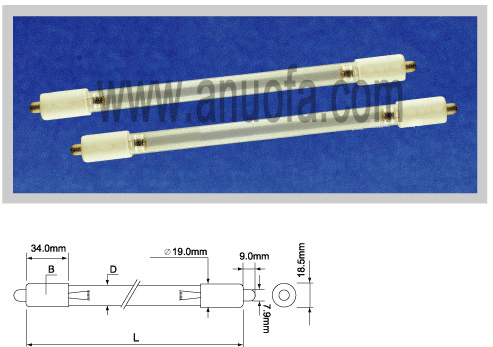

Table 2 - Slim-line Double Ended Single Pin Germicidal Lamps

Lamp Models Lamp Dimension(mm) Cap  Lamp Lamp Lamp Output Useful
Watts Voltage Current Life
Ozone Free Ozone Producing W Length Diameter (B) V@50Hz mA Watts @1m Hour
      (L) (D)       W mw/cm3
G14T5L/DE1P G14T5VH/DE1P 14 287 15 Single Pin 40 400 4 35 8000
G25T5L/DE1P G25T5 VH /DE1P 25 436 15 Single Pin 62 400 6 69 8000
G36T5L/DE1P G36T5 VH /DE1P 39 842.4 15 Single Pin 115 425 12 120 8000
G64T5L/DE1P G64T5 VH /DE1P 65 1553.6 15 Single Pin 250 425 22 200 8000
G36T5L/HO/DE1P G36T5 VH/HO/DE1P 80 842.4 15 Single Pin 120 900 30 260 8000
G64T5L/VHO/DE1P G64T5VH/VHO/DE1P 150 1553.6 15 Single Pin 220 900 49 450 8000

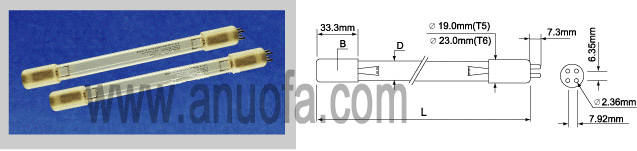

Low Pressure Preheat UV Germicidal Lamps (GPH)

Preheal germicidal lamps are operated by a preheat-start circuit that employs a relatively compact and economical ballast. The preheat circuit requires four electrical connections per lamp and a slight to moderate delay is needed to start the lamp Due to increased circuit complexity, reliability is regarded as slightly less than slim-line or cold-cathode instant-start circuits.


G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L

Table 3 - Singled Ended 4 Pin Preheat Start Germicidal Lamps (GPH)

Lamp Models Lamp Dimension(mm) Cap Lamp Lamp UV Output Useful
Watts Voltage Current Life
Ozone Free Ozone Producing W Length Diameter (B) V@50Hz mA Watts @1m Hour
      (L) (D)       W mw/cm3
G10T5L/SE4P G10T5VH/SE4P 10 212 15 4Pin 39 420 2.9 23 6000
G14T5L/ SE4P G14T5 VH / SE4P 14 287 15 4Pin 39 420 3.8 36 8000
G15T5L/ SE4P G15T5 VH / SE4P 15 303 15 4Pin 40 420 4 37 8000
G18T5L/ SE4P G18T5 VH / SE4P 18 356 15 4Pin 51 420 5.5 53 8000
G23T5L/ SE4P G23T5 VH / SE4P 23 436 15 4Pin 65 420 6.9 68 8000
G37T5L/ SE4P G37T5 VH / SE4P 37 793 15 4Pin 105 420 12.9 130 8000
G36T5L/ SE4P G36T5 VH / SE4P 39 846 15 4Pin 110 420 13 132 8000
G40T5L/ SE4P G40T5 VH / SE4P 40 851 15 4Pin 110 420 14 140 8000
G23T5L/ HO/SE4P G23T5 VH / HO/SE4P 40 436 15 4Pin 86 610 14 140 8000
G55T5L/ SE4P G55T5 VH / SE4P 55 1149 15 4Pin 150 420 16 150 8000
G36T5L/ SE4P G36T5 VH / SE4P 65 846 15 4Pin 110 775 19 165 8000
G64T5L/ SE4P G64T5 VH / SE4P 65 1553.6 15 4Pin 220 425 19 165 8000
G75T5L/ SE4P G75T5 VH / SE4P 75 1550 15 4Pin 210 420 21 180 8000
G36T6L/ VHO/SE4P G36T6 VH / VHO/SE4P 80 846 19 4Pin 120 1200 28 240 8000
G120T6L/ VHO/SE4P G120T6 VH / VHO/SE4P 120 1149 19 4Pin 170 1200 39 330 8000
G64T6L/ VHO/SE4P G64T6 VH / VHO/SE4P 150 1553.6 19 4Pin 220 1200 45 400 8000
G64T5L/ VHO/SE4P G64T5 VH / VHO/SE4P 155-195 1553.6 19 4Pin 220 800-1000 45-58 380-485 8000



Low Pressure Compact Germicidal Lamps

The design of "H" shaped and "U" shaped germicidal lamps is primarily employed in application where more intense UV radiation is needed in a limited space. So it is compact. H-shape and U- shape are also instant start lamps.

Remarks: Custom designed U shape germicidal lamps are available.


G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L

Table 4 - H Shape Compact Germicidal Lamps

Lamp Models Lamp Dimension(mm) Cap Lamp Lamp UV Output Useful
Watts Voltage Current Life
Ozone Free Ozone Producing W Length Diameter (B) V@50Hz mA Watts @1m Hour
      (L1) (L2)       W mw/cm3
G5L/H/G23 G5VH/H/G23 5 85 105 G23 35 180 1.2 12 6000
G7L/H/G23 G7 VH /H/G23 7 115 135 G23 45 180 1.9 20 8000
G9L/H/G23 G9 VH /H/G23 9 145 165 G23 60 180 2.4 23 8000
G11L/H/G23 G11 VH /H/G23 11 215 235 G23 90 155 3 30 8000
G13L/H/GX23 G13 VH /H/GX23 13 170 190 GX23 60 285 3.6 35 8000
G5L/H/2G7 G5 VH /H/2G7 5 85 105 2G7 35 180 1.2 12 8000
G7L/H/2G7 G7 VH /H/2G7 7 115 135 2G7 47 175 1.9 20 8000
G9L/H/2G7 G9 VH /H/2G7 9 145 165 2G7 60 170 2.4 23 8000
G11L/H/2G7 G11 VH /H/2G7 11 215 235 2G7 91 155 3 30 8000
G18L/H/2G11 G18 VH /H/2G11 18 195 225 2G11 58 375 5.5 60 8000
G24L/H/2G11 G24 VH /H/2G11 24 290 320 2G11 87 345 8.5 90 8000
G36L/H/2G11 G36 VH /H/2G11 36 385 415 2G11 87 435 12 120 8000
G40L/H/2G11 G40 VH /H/2G11 40 503 533 2G11 120 385 15 135 8000
G55L/H/2G11 G55 VH /H/2G11 55 503 533 2G11 105 540 17 170 8000
G35L/HO/H/2G11 G35 VH /HO/H/2G11 35 195 225 2G11 87 435 12 120 8000
G60L/HO/H/2G11 G60 VH /HO/H/2G11 60 385 415 2G11 105 600 20 200 8000



Low Pressure Cold Cathode UV Germicidal Lamps

Cold cathode germicidal lamps are instant utilizing a large cylindrical cathode instead of a coil filament.Due to this construction, the lamps are not adversely affected by frequent start and the life is considerably in excess of other lamp types. Cold cathode germicidal lamps have favorable operating characteristics and maintain a high ultraviolet transmission throughout life even at reduced temperature. They are, therefore, widely used in walk-in refrigerators and holding rooms. Cold cathode UV lamps are well suited to disinfection of air and surface of unoccupied areas due to their long life and low depreciation. Cold cathode germicidal lamps are also employed in application where frequent start is a requirement.

Remarks: U shape circular shape cold cathode UV germicidal lamps are available. Custom designed cold cathode UV germicidal lamps are available.


G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L

Table 5 - Cold Cathode Germicidal Lamps

Lamp Models Lamp Dimension(mm) Cap Lamp Lamp Lamp Output Useful
Watts Voltage Current Life
Ozone Free Ozone Producing W Length Diameter (B) V@50Hz mA Watts @1m Hour
      (L) (D)       W mw/cm2
G15CCL G15CCVH 15 357 15 Single Pin 180 90 2.8 22 20000
G22CCL G22CCVH 22 611 15 Single Pin 270 90 5.5 45 20000
G28CCL G28CCVH 28 865 15 Single Pin 350 90 8.5 63 20000



Mini-Bowl-Shape Self-Ballast UV
Germicidal Lamps

This item is mainly employed in enclosed compact area, such as sterilization cabinet, microwave oven, refrigerator and other home appliances.

G55T8L,G14T5L,G15T5L,G18T5L,G37T5L,G40T5L,G55T5L,G15T6L,G20T6L,G30T6L,G40T6L,G67T5L,G115T5L

Remarks: Standard ballasts are available. C
ustom designed ballasts are available. UL, CSA, CE approved ballasts are available.


Table 6 - Mini-Bowl-Shape Self-Ballast UV Germicidal Lamps
Lamp Models Lamp Dimension(mm) Cap Lamp Lamp Lamp Output Useful
Watts Voltage Current Life
Ozone Free Ozone Producing W Length Diameter (B) V@50Hz mA Watts @1m Hour
      (L) (D)       W mw/cm2
G2LE17 G2VHE17 2 55 20 Mini-bowl E17 10 0.13 28 2000
G3LE17 G3VHE17 3 63 20 Mini-bowl E17 10 0.17 30 2000
G4LE17 G4VHE17 3.5 57 35 Mini-bowl E17 10 0.19 35 2000
