Extent of Supply

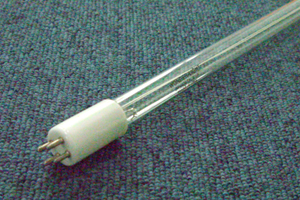

Vacuum UV lamp Model NAQ for 20ˇăC - 40ˇăC *
Vacuum UV lamp Model NIQ for 40ˇăC - 80ˇăC *
Clamp24
Power supply
*air temperature in the hood |
| Technical Data UV Oxidation Lamp |
| Suitable for an airflow rate |
1500 - 2200 m3/h |
| Useful operating time |
10.000 h Vacuum UV |
| Lamp wall temperature |
< 100oC |
| Lamp base dimensions |
50 mm long x 24 mm¦µ |
| Lamp
Type |
Part
no. |
overall
length L1 [mm] |
arc length
L2 [mm] |
Lamp
diameter
D1 [mm] |
Lamp Base
diameter
D2 [mm] |
Lamp
Input
Power
[W] |
Lamp
Current
[A] |
UV Output
254 nm
[W] |
UV Output
185 nm*
[W] |
lifetime
254 nm
[hrs]** |
|
| NNI
60/35 XL |
80014633 |
450 |
384 |
15.2 |
19.0 |
70 |
1.4 |
23 |
- |
16000 |
|
|
