ZLQ320-220 UV lamp Electronic Ballast 240W,256W,270W,320W,500W for GPHA1554T6L GPHHA1554T6L GIA240 NNI200/107XL NNI300/147XL Name©U ZLQ320-220,240W,256W,270W,320W,500W Electronic Ballast
Model No.©U use for GPHA1554T6L GPHHA1554T6L GIA240 NNI200/107XL NNI300/147XL
Brand Name©U XC
Export Markets©U USA,EUROPE,CANADA WORLDWIDE
Country of Origin©U China
Technical Parameters:

Rated Voltage:230VAC
Power Factor:°›0.99
Voltage Range:160-260V
Input Frequency:50/60Hz

Peak Factor:°‹1.7
Work Frequency:28-50Khz
Efficiency:°›94%
Max. Housing Temperature:70°ś
Start Way: Preheat

Electronic Ballast Power:240W,256W,270W,320W
Matching UV Lamp Models£ļGPHA1554T6L GPHHA1554T6L GIA240

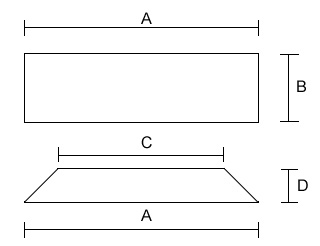

Optional Dimensions for Electronic Ballast:

1. A=248mm B=105mm C=283mm D=46mm

2. A=258mm B=155mm C=205mm D=55mm

3. A=300mm B=105mm C=235mm D=45mm

ZLQ320-220 UV lamp Electronic Ballast 240W,256W,270W,320W,500W for GPHA1554T6L GPHHA1554T6L GIA240 NNI200/107XL NNI300/147XL
