Name:Replacement Philips UV lamp TUV 36 T5SP UV LAMP
TUV 36 T5 4P-SE - Philips
TUV 36 T5 HO 4P-SE - Philips
TUV 36 T5 Single Pin - Philips

The UV-C radiation output of these lamps is indicated by the following warning sign. Radiation of these lamps is harmful to eyes and skin.Installations with these lamps are to be screened off completely.

•unparalleled end-of=life UV-C output
•constant performance over 9000 hrs useful life
•ultra-low mercury dose: 5.5 mgs!
•Ultem* high-temperature and UV-resistant lamp bases
•no ozone generation
*Ultem is a G.E.trademark

Note
The UV-C radiation output of these lamps is indicated by the following warning sign.
Radiation of these lamps is harmful to eyes and skin.
Installations with these lamps are to be screened off completely.

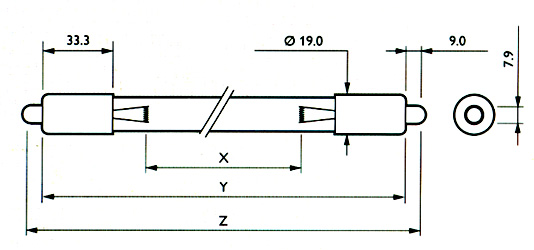

Type	X	Y	Z
Cap/base single-pin
TUV 36W T5	762	842.4±3.0	860.4±3.5
TUV 64W T5	1473	1553.6±3.0	1571.6±3.5

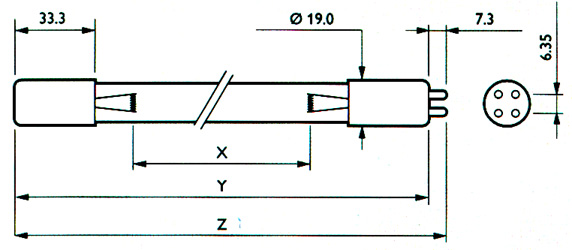

Type	X	Y	Z
Cap/base 4-pin,single-ended
TUV 36W T5	762	842.4±3.0	849.5±3.5
TUV 64W T5	1473	1553.6±3.0	1561.0±3.5

Type	Cap/ base	Lamp diameter mm	Lamp voltage*) V	Lamp current*) mA	Lamp wattage*) W	UV-C 100h W	Maintenance 9000h %	Useful life h	Ordering number
TUV 36W T5	single-pin	16	94	425	40	15	85	9000	9279 700 04088
TUV 64W T5	single-pin	16	176	425	75	31	85	9000	9279 705 04088
TUV 36W T5	4-pin single-ended	16	94	425	40	15	85	9000	9279 702 04088
TUV 64W T5	4-pin single-ended	16	176	425	75	31	85	9000	9279 707 04088
25 kHz HF

Type	lamp power	radiation flux	life-time	depreciation 8000h	lamp voltage	lamp current
TUV6W	6	0.085	2500	25		0.027
T5 Types	Wel	Wuv-c	LH	depr.%	V	A
TUV4WT5	4	0.6	8000	15	29	0.17
TUV6WT5	6	1.3	8000	15	44	0.16
TUV8WT5	8	2.0	8000	15	56	0.15
TUV11WT5	11	3.0	9000	25	37	0.33
TUV16WT5	16	4.3	9000	25	45	0.38
TUV25WT5	28	8.8	9000	20	68	0.49
TUV36T5	40	15.0	9000	15	94	0.43
TUV36T5HO	75	25.0	9000	20	97	0.8
TUV64T5	75	30.0	9000	15	176	0.43
TUV64T5HO	145	48.0	9000	20	175	0.8
T8 Types	Wel	Wuv-c	Lh	depr.%	V	A
TUV10W	10	2.5	8000	15	45	0.23
TUV15W	15	4.0	8000	15	51	0.34
TUV25W	25	7.0	8000	15	46	0.6
TUV30W	30	11.0	8000	15	100	0.37
TUV36W	36	14.0	8000	15	103	0.44
TUV55WHO	55	18.0	8000	15	83	0.77
TUV75WHO	75	25.0	8000	15	108	0.81
TUVTL-D95WHO	60	22.5	5000	15	120	0.62
TUV115WVHO	115	34.0	5000	15	92	1.50
TUV115WRVHO	115	27.0	5000	20	92	1.50
U shape types	Wel	Wuv-c	Lh	depr.%	V	A
TUV5WPL-S	5	1.0	8000	15	34	0.18
TUV9WPL-S	9	2.1	8000	15	60	0.17
TUV11WPL-S	11	3.6	8000	15	89	0.16
TUV18WPL-L	18	5.0	8000	15	60	0.37
TUV36WPL-L	36	12.0	8000	15	105	0.44
TUV55WHFPL-L	55	17.0	8000	15	105	0.54
TUV35WHOPL-L	35	11.0	8000	15	40	0.85
TUV60WHOPL-L	60	18.0	8000	20	118	0.67
TUV90WHOPL-L	90	32.0	8000	15	100	0.95
Amalgam types	Wel	Wuv-c	Lh	depr.%	V	A
TUV130WXPTT6	146	50	12000	15	71	2.1
TUV240WXPTT6	243	86	12000	15	134	1.8
TUV325WXPTT6	280	100	12000	15	141	2.0
TUV250WXPTT8	255	90	12000	15	83	3.1
TUV270WXPTT10	268	100	12000	15	78	3.5
TUV330WXPTT10	325	107	12000	15	72	4.6
TUV 260W XPT DIM UNP	260	90	12000	15	85	3.055

Type	lamp Wattage (W)	lamp Voltage(V)	Lamp Current(A)	Life Time	depreciation at useful lifetime (%)	Lamp Length(mm)	Dirver
TUV 130W XPT SE	140	67	2.1	12000	10	842	TUV 130W XPT Dirver
TUV 180W XPT SE	180	90	2.1	12000	10	1032	TUV 180W XPT Dirver
TUV 200W XPT SE	200	94	2.1	12000	10	1147	TUV 200W XPT Dirver
TUV 325W XPT HO SE	305	160	2.0	12000	10	1582	TUV 325W XPT (HO )Dirver
TUV 330W XPT SE	275	78	3.6	12000	10	1556
TUV 800W XPT SE	815	103	2.1	12000	15	1791
TUV 230W WE XPT SE	230	88	2.6	16000	10	1514	DynaPower
TUV 260W XPT DIM	222	76	2.9	16000	10	1514	DynaPower
TUV 335W XPT SE	293	77	3.8	16000	10	1514	DynaPower
TUV 335W WP XPT SE	293	77	2.6	16000	10	1514	DynaPower
TUV 36T5 HE SP	40	97	0.425	9000	15	863.9
TUV 36T5 HO 4P SE	75	97	0.800	9000	15	853.1
TUV 36T5 HE 4P SE	40	97	0.425	9000	15	853.1
TUV 64T5 HE 2P SE	75	178	0.425	9000	15	1564.5
TUV 64T5 HE 4P SE	75	178	0.425	9000	15	1564.4
TUV 64T5 HE 4P SE	75	178	0.425	9000	15	1564.4
TUV 64T5 HO 4P SE	140	175	0.800	9000	15	1564.4
