Name©U Aquafine UV lamps
Model No.©U 17491LM,3084LM,17498,17998LM
Export Markets©U EUROPE AND USA,CANADA WORLDWIDE |
 |

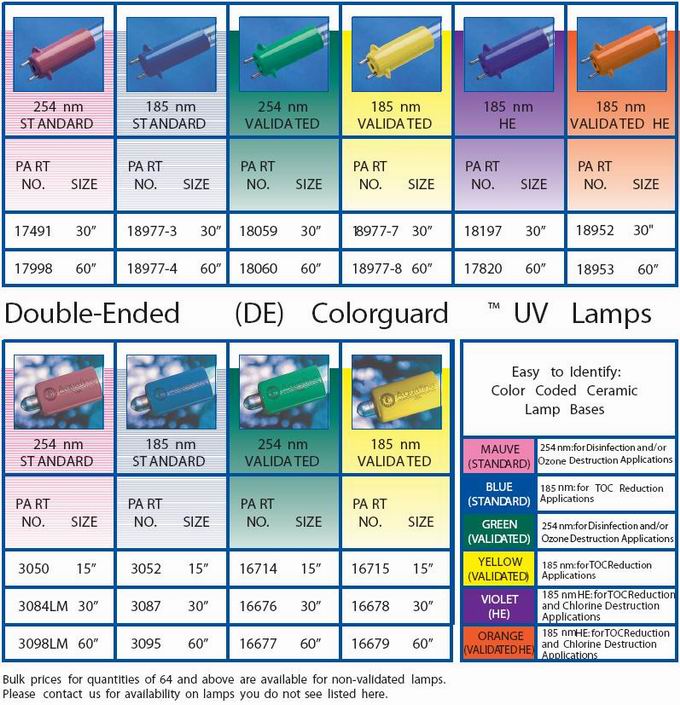

W2T472870 UV Lamp Single Ended Aquafine
17491, 30 Inch Length, For CSL Series and DW-8, Mauve |
|
W2T154958 UV Lamp Aquafine 17998 Single-Ended, 60 Inch
Length, Mauve |
 |
W2T169348 UV Lamp Double-Ended Disinfection (254nm)
Aquafine 3010 For SP-1, 12 Inch Length Aluminium |
 |
W2T169351 UV Lamp Double-Ended Aquafine 3011 For SP-2,
12 Inch Length, Mauve |
|
W2T169354 UV Lamp, Double Ended Disinfection (254nm)
Aquafine 3050 For SL-10A, 15 Inch Length Mauve |
|
W2T169640 UV Lamp Double-Ended Disinfection (254nm)
Lamp Aquafine 3084LM (Low Mercury) 30 Inch Length Mauve |
|
W2T169643 UV Lamp Double-Ended Aquafine 3087 TOC Reduction
(185nm), 30 Inch Length, Blue |
|
W2T169646 UV Lamp Double-Ended UV Lamp Aquafine 3095
TOC Reduction (185nm) 60 Inch Length, Blue |
|
W2T169649 UV Lamp Double-Ended Disinfection (254nm)
Aquafine 3098LM (Low Mercury), 60 Inch Length, Mauve |
| |
W2T187975 UV Lamp Disinfection (254nm) Aquafine 19306
For DW-5, 11 Inch Length |
 |
W2T169347 UV Lamp Single Ended UV Lamp Aquafine 18063,
30 Inch Length for TOC Reduction Blue |
|
W2T154844 UV Lamp Aquafine 17498, TOC/Chlorine Reduction
60 Inch Length, Blue |
 |
W2T163500 UV Lamp Aquafine 18197, HE TOC/Chlorine Reduction,
30 Inch Length, Violet |
|
W2T176294 UV HE Lamp Aquafine 17820, TOC/Chlorine Reduction,
60 Inch Length, Violet |
 |
W2T180904 UV HE Lamp Aquafine 18198, Disinfection 30
Inch Length, Cyan |
|
W2T154959 UV HE Lamp Aquafine 18024, Disinfection 60
Inch Length, Cyan |
 |
W2T186866 UV Lamp Aquafine GOLD-S, 30 Inch Length Disinfection/Ozone
254nm |
|
W2T186867 Aquafine UV Lamp 18977-11, GOLD-L, 254nm
Disinfection Lamp, 60 Inch Length |
 |
W2T198657 UV Lamp Aquafine CREAM-S, 254nm Validated |
|
UV Lamp Aquafine CREAM-L, 254nm Validated |
 |
W2T169579 UV Lamp Aquafine 18062, 30 Inch Length TOC/Chlorine
Destruction Validated 185nm. PK of 4 |
|
W2T169578 UV Lamp Aquafine 18061, 60 Inch Length TOC/Chlorine
Destruction 185nm Validated PK of 4 |
 |
W2T154960 UV Lamp Aquafine 18059, 30 Inch Length Disinfection/Ozone
254nm Validated, PK of 4 Green |
|
W2T154961 UV Lamp Aquafine 18060, 60 Inch Length Disinfection/Ozone
254nm Validated PK of 4 Green |
 |
W2T401982 UV Lamp Aquafine 18952, 30 Inch Length TOC/Chlorine
Destruction 185nm Validated Orange |
|
W2T153113 UV Lamp Aquafine 18953, 60 Inch Length TOC/Chlorine
185nm Validated Orange |
 |
18950 UV Lamp HE Aquafine 18950, 30 Inch Length Disinfection/Ozone
254nm Validated Black |
|
18951 UV Lamp HE Aquafine 18951, 60 Length Disinfection/Ozone
254nm Validated Black |
|

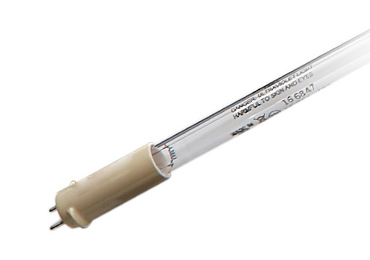

UV Lamp Aquafine Tan-S, 30 Inch Length TOC/Chlorine
Detruction 185nm Validated |
|
W2T198538 UV Lamp Aquafine Tan-L, 60 Inch Length TOC/Chlorine
Detruction 185nm Validated |
|
UV Lamp Aquafine CREAM-S, 254nm Validated |
|
W2T198536 UV Lamp Aquafine CREAM-L, 254nm Validated |
|
W2T174452 UV Lamp Aquafine 3052, 15 Inch Length TOC/Chlorine
Destruction Blue 185nm |
 |
W2T153926 UV Lamp Aquafine 16678, 30 Inch Length Destruction
Validated, 185nm PK of 4 Yellow |
|
3015UV Lamp Aquafine 3015, 12 Inch Length, TOC/Chlorine
Destruct |
|
W2T154842 UV Lamp Aquafine 16715, 15 Inch Length DE
Yellow 185nm Validated, PK of 4 |
|
W2T154840 UV Lamp Aquafine 16679, 60 Inch Length Validated
185nm, PK of 4 |
 |
W2T154841 UV Lamp Aquafine 16714, 15 Inch Length Disinfection/Ozone
Validated 254nm, PK of 4 |
|
W2T153925 UV Lamp Aquafine 16677, 60 Inch Length Disinfection/Ozone
Validated 254nm, PK of 4 |
 |
W2T198650 UV Lamp Aqufine Silver-S, 30 Inch Length
TOC/Chlorine Destruction 185nm |
|
W2T198656 UV Lamp Aquafine Silver-L, 60 Inch Length
TOC/Chlorine Destruction 185nm |
UV 3084, TOC 3087,
TOC WONDER LIGHT G48T6VH
18063, 17498, 18977-3,
18977-4, 18977-7,
18977-8, 17491LM,
17998LM, 18062, 18061
18059,18060, 18197,
17820, 18198, 18024,
18952, 18953, 18950,
18951, SILVER-S
SILVER-L, GOLD-S,
GOLD-L, TAN-S, TAN-L,
CREAM-S, CREAM-L,
3015, 3052, 3087,
3095, 3010, 3011,
3050, 3070, 3084LM,
3098LM, 16715, 16678,
16679, 16714, 16676,
16677, 3089, 3099,
14151 , 15146, 14152,
15966, 3184, 18347
, 17751, 18348, 3198,
3150, 18057, 19882, 16791
|

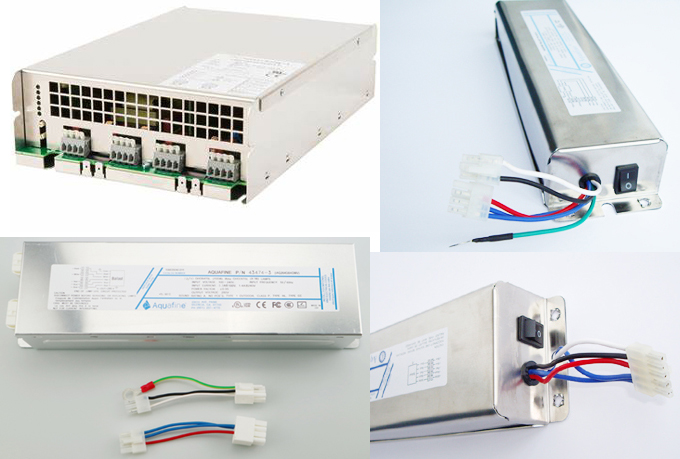

We provide Aquafine Ballast with good price and prompt delivery.
Part # |
MODEL |
BALLAST |
VOLTAGE |
3354 |
MP2-SL£¬CSL£¬RBE£¬SCD |
MAGNETIC |
120V |
3493 |
DW-5£¬DW-8£¬SL-10A£¬SL-1 |
MAGNETIC |
240V |
43474-1 |
HE & HX |
HE & HX |
120V/240V |
45040 |
HX MINI |
HX |
120V/277V |
4125 |
MP2-SL£¬CSL£¬RBE£¬SCD |
MAGNETIC |
240V |
16518-1 |
MP2-SL£¬CSL£¬RBE£¬SCD |
ELECTRONIC |
120V |
4035 |
SL-1£¬DW-8£¬SL-10A |
MAGNETIC |
120V |
3318 |
SP-1 |
CHOKE COIL |
120V |
4131 |
SP-1 |
CHOKE COIL |
240V |
3910 |
SP-2 |
CHOKE COIL |
120V |
4134 |
SP-2 |
CHOKE COIL |
240V |
19721 |
MP2-SL£¬CSL£¬RBE£¬SCD |
MAGNETIC |
120V |
19721-1 |
MP2-SL£¬CSL£¬RBE£¬SCD |
MAGNETIC |
240V |

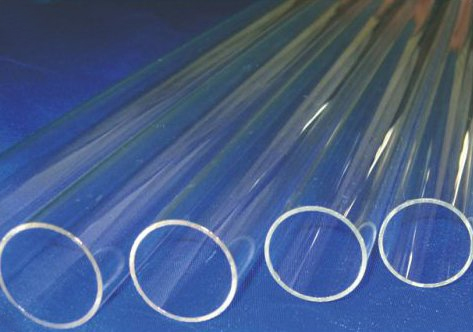

Part # |
TYPE |
QUARTZ END |
LENGTH |
DIAMETER |
3110 |
DOUBLE - ENDED |
OPEN |
10" |
25 MM |
3150 |
DOUBLE - ENDED |
OPEN |
13" |
25 MM |
3184 |
DOUBLE - ENDED |
OPEN |
30" |
25 MM |
3198 |
DOUBLE - ENDED |
OPEN |
60" |
25 MM |
18347 |
DOUBLE - ENDED |
OPEN |
30" |
22.5 MM |
18348 |
DOUBLE - ENDED |
OPEN |
60" |
22.5 MM |
18057 |
SINGLE - ENDED |
DOMED |
30" |
22.5 MM |
19882 |
SINGLE - ENDED |
DOMED |
30" |
25 MM |
17751 |
SINGLE - ENDED |
DOMED |
60" |
22.5 MM |
16791 |
SINGLE - ENDED |
DOMED |
60" |
25 MM |
19330 |
DW-5 |
DOMED |
14" |
22.5 MM |
45034 |
OPTIMA HX MINI |
OPEN |
17" |
25 MM |
| Aquafine CSL-4R |
Aquafine CSL-6R |
Aquafine CSL-8R |
Aquafine CSL-12R |
| Aquafine CSL-12R/60 |
Aquafine CSL-24R |
Aquafine CSL-8R/60 |
Aquafine CSL-10R/60 |
| Aquafine CSL-16R/60 |
Aquafine CSL-20R/60 |
Aquafine CSL-24R/60 |
Aquafine MCSL-4R |
| Aquafine MCSL-6R |
Aquafine MCSL-8R |
Aquafine MCSL-12R |
Aquafine DW-5 |
| Aquafine DW-8 |
Aquafine SP-1 |
Aquafine SP-2 |
Aquafine SL-10A |
| Aquafine SL-1 |
Aquafine MP2SL |
Aquafine 12R LS HX |
Aquafine 12R/60 LS HX |
| Aquafine 24R/60 LS HX |
Aquafine 36R/60 LS HX |
Aquafine OPTIMA 50 |
Aquafine OPTIMA 100 |
| Aquafine OPTIMA 150 |
Aquafine OPTIMA 200 |
Aquafine OPTIMA 320 |
Aquafine OPTIMA 400 |
| Aquafine OPTIMA 520 |
Aquafine OPTIMA 630 |
Aquafine HX02ADS |
Aquafine HX02BDS |
| Aquafine HX02CDS |
Aquafine HX02BDL |
Aquafine HX02DDS |
Aquafine HX02CDL |
| Aquafine HX02DDL |
Aquafine HX04CDL |
Aquafine HX06CDL |
Aquafine HX05DDL |
| Aquafine HX02ADS |
Aquafine HX06DDL |
Aquafine HX08DDL |
Aquafine HX08EDL |
| Aquafine HX08FDL |
Aquafine HX08GDL |
Aquafine HX10GDL |
Aquafine HX12GDL |
| Aquafine SB10 |
Aquafine SBV20 |
Aquafine SBV30 |
Aquafine SBV40 |
| Aquafine SBV60 |
Aquafine SBV80 |
Aquafine SBV300 |
Aquafine SBV600 |
| Aquafine SBV1200 |
Aquafine SBV1800 |
Aquafine SBV3000 |
Aquafine UVK-1 |
| Aquafine UVK-2 |
Aquafine UVK-3 |
Aquafine UVK-4 |
Aquafine UVK 1000 |
| Aquafine UVK 2000 |
Aquafine UVK 3000 |
Aquafine UVK 4000 |
Aquafine UVK 6000 |
| Aquafine UVK 8000 |
Aquafine UVK 3000D |
Aquafine UVK 6000D |
Aquafine UVK 12000D |
| Aquafine UVK 18000D |
Aquafine UVK 30000D |
|
|
Aquafine 18763, 47387, 40569, 16184

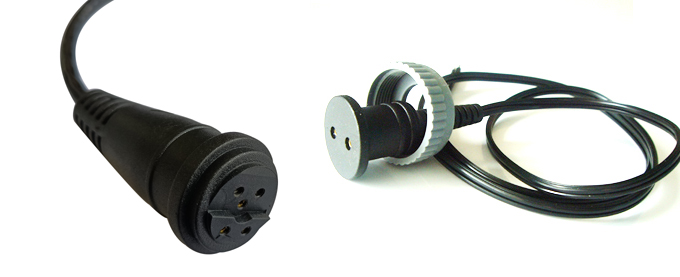

Aquafine 47520-1, Single Ended Lamp Socket, 3 foot, w/ End Cap
- Single Ended Lamp Socket
- 3 foot
- Includes CPVC End Cap and Washer
- Used in HX Series UV
- Replacement for Obsolete Part Numbers: 18763-3, 40569-3, and 47387-3
Aquafine 47520-3, Single Ended Lamp Socket, 8 foot, w/ End Cap
- Single Ended Lamp Socket
- 8 foot
- Includes CPVC End Cap and Washer
- Used in HX Series UV
- Replacement for Obsolete Part Numbers: 18763-8, 40569-8, and 47387-8
Aquafine 47520-5, Single Ended Lamp Socket, 16 foot, w/ End Cap
- Single Ended Lamp Socket
- 16 foot
- Includes CPVC End Cap and Washer
- Used in HX Series UV
- Replacement for Obsolete Part Numbers: 18763-16, 40569-16, and 47387-16
Aquafine 47387-3, Lamp Socket with 3' Lead Wires
- Replacement lamp socket
- 3' lead wires
- Used in CSL, DW, SL, MP-2, Optima, HX, and SCD models
Aquafine 47387-8, Lamp Socket with 8' Lead Wires
- Replacement lamp socket
- 8' lead wires
- Used in CSL, DW, SL, MP-2, Optima, HX, and SCD models
Aquafine 47387-16, Lamp Socket with 8' Lead Wires
- Replacement lamp socket
- 8' lead wires
- Used in CSL, DW, SL, MP-2, Optima, HX, and SCD models
Aquafine 40569-3, Lamp Socket with 3' Lead Wires
- Replacement lamp socket
- 3' lead wires
- Used in CSL, DW, SL, MP-2, Optima, HX, and SCD models
Aquafine 40569-8, Lamp Socket with 8' Lead Wires
- Replacement lamp socket
- 8' lead wires
- Used in CSL, DW, SL, MP-2, Optima, HX, and SCD models
Aquafine 17489-5 cap
Aquafine 12422, 17496, 19685, 18468, 40357
Aquafine 40357,19685 Compression Nut 25MM, Aluminum alloy

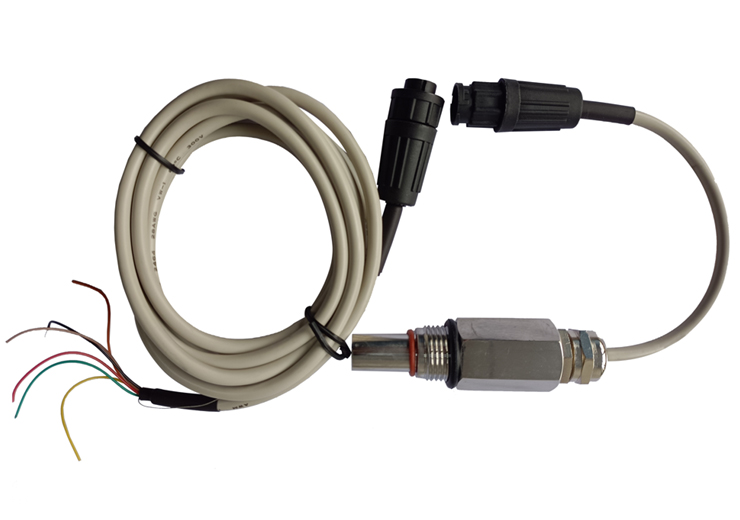

Aquafine 015561 Standard Detector Replaces 42601 UV Sensor
|
