  Water treatment uv lamps

  Air purifier uv lamps

  Aquarium UV lamps

  Quartz sleeves

  Nail gel curing lamps

  UV Curing lamps

  Ballast

  Other UV lamps

  various brand UV lamps

  UV Cleaning Lamp

  UV Sterilizer

UV Cleaning Lamp Manufacturer

It is UV light cleaning and reforming for various physical, chemical impurities in LOD, OLED, semiconductor. It should be eliminated as it could affect serious damage. UV lamp eliminates any impurities effectively when the thickness of layer is under A.
Usage
1. Cleaning and reforming of LOD, PDP, OLED and Wafer
1. surface.
2. Optical glass, lead frame
3. Acrylic, PP and PE film
4. Functional plastics/new materials

(D)Shape

Overall Length

Arc Length

Wattage

WUV 20DB

216mm

140mm

20

WUV 40DB

530mm

330mm

40

WUV 90DB

1030mm

880mm

90

WUV 110DB

1250mm

1100mm

110

WUV 200DB

1650mm

1600mm

200

(U)Shape

Overall Length

Arc Length

Wattage

WUV 40UB

270mm

200mm

40

WUV 90UB

630mm

453mm

90

WUV 110UB

840mm

663mm

110

WUV 200UB

820mm

760mm

200

(N)Shape

Overall Length

Arc Length

Wattage

WUV 90NB

290mm

255mm

90

WUV 110NB

380mm

300mm

110

WUV 200NB

640mm

488mm

200

(M)Shape

Overall Length

Arc Length

Wattage

WUV 110NB

300mm

227mm

110

WUV 200NB

390mm

340mm

200



IWASAKI Type
Model
Lamp Output(W)
Effective Length A
(Are Length B)
Average Life
(Hr)
Cooling Method

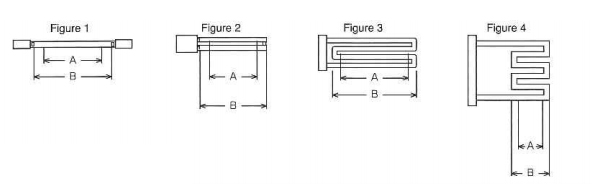

Figure
Long Life
Low Output
QGL40U-3
40
199(249)
6000
Water
Fig2
QGL80U-3
55
340(390)
6000
Water
Fig2
QGL90U-3
90
410(460)
6000
Water
Fig2
QGL100U-3
100
507(557)
6000
Water
Fig2
QGL110U-31
110
510(560)
6000
Water
Fig2
QGL160U-31
160
570(620)
6000
Water
Fig2
QGL200U-31
200
677(727)
6000
Water
Fig2
QGL200G-3
200
290(360)
6000
Water
Fig3
High Output
QGL600G-3
600
160(240)
6000
Water
Fig4
QGL320U-3A
320
400(450)
6000
Water
Fig2
QGL400U-3A
400
500(550)
6000
Water
Fig2
QGL600U-3A
600
800(850)
6000
Water
Fig2
QGL800U-3A
800
1100(1150)
6000
Water
Fig2
QGL900U-3
800
1200(1250)
6000
Water
Fig2
QGL1100U-35
800
1490(1550)
6000
Water
Fig2
QGL1200U-3
800
1600(1655)
6000
Water
Fig2
QGL630U-3
630
2100(2160)
6000
Water
Fig1
QGL1150U-3
1150
2100(2160)
6000
Water
Fig2
QGL720-3
720
2400(2740)
6000
Water
Fig1
QGL1300U-3
1300
2400(2615)
6000
Water
Fig2
General
Low Output
QGL25-31
25
300(340)
2000
Air
Fig1
QGL40-31
40
560(600)
2000
Air
Fig1
QGL65-31
65
870(910)
2000
Air
Fig1
High Output
QGL350U-3
350
355(405)
2000
Water
Fig2





QGL90U EYE UV LAMP JAPAN EYE QGL90U UV LAMP JAPAN IWASAKI UV LAMP QGL90U

EYE UV CLEANING LAMP/EYE UV CLEANING LAMPS
JAPAN UV CLEANING LAMP/JAPAN UV CLEANING LAMPS
QGL40U-3£¬QGL80U-3£¬QGL90U-3£¬QGL100U-3£¬QGL110U-31£¬QGL160U-31£¬QGL200U-31£¬QGL200G-3£¬QGL600G-3£¬QGL320U-3A£¬QGL400U-3A£¬QGL600U-3A£¬QGL800U-3A£¬QGL900U-1£¬QGL1100U-35£¬QGL1200U-1£¬QGL600-1£¬QGL1150U-1£¬QGL720-1£¬QGL1300U-1£¬QGL25SY£¬QGL40SY£¬QGL65-31£¬QGL90U-31£¬QGL180G-1£¬QGL200U-3£¬QGL320U-3£¬QGL400U-3£¬QGL600U-3£¬QGL800U-3£¬QGL380U-31£¬QGL430U-31£¬QGL480U-31

JAPAN GS UV CLEANING LAMPS UV O3 LAMPS
L250US£¬L251US£¬L500US£¬L501US£¬L650US£¬L651US£¬L800US£¬L801US£¬L1100US£¬L1101US£¬L1701US£¬L250MS£¬L251MS£¬L500MS£¬L501MS£¬L650MS£¬L651MS£¬L1000MS£¬L1001MS£¬L1100MS£¬L1101MS£¬L1300MS£¬L1301MS£¬L1501MS£¬L1700MS£¬L1701MS£¬L1900MS£¬L1901MS£¬L2100MS£¬L2101MS£¬L2200MS£¬L2201MS£¬L2401MS£¬L500TS£¬L501TS£¬L650TS£¬L651TS£¬L800FS£¬L801FS£¬L1500PS£¬L1501PS£¬L2200PS£¬L2201PS?

EYE UV LAMP
QGL40U-3,QGL80U-3,QGL90U-3,QGL100U-3,QGL110U-31
QGL160U-31,QGL200U-31,QGL200G-3,QGL600G-3,QGL320U-3A
QGL400U-3A,QGL600U-3A,QGL800U-3A,QGL900U-1,QGL1100U-35
QGL1200U-1,QGL600-1,QGL1150U-1,QGL720-1,QGL1300U-1
SEN UV LAMP
SUV20DS,SUV40DSW,SUV90DS,SUV200DS,SUV40US,SUV90USW,SUV110US,? SUV200US,SUV 90NS,SUV110NS,SUV200NS,SUV110MS,SUV200MS,CTU-160-22-B-AL,CTU-5GLZ-30-AL,LM-1501S,LM-1701S,SUV40DS,SUV90DS,SUV110DS,EUV200DS EUV250DS,EUV300DS,EUV400DS,EUV400DS,FUV400US,SUV40,SUV40U,SUV40G SUV70D,SUV90D,SUV90U,SUV110D,SUV110U,SUV110W,SUV110G,SUV110P, EUV200D,EUV200U,EUV200N,EUV200W,EUV200P,EUV250D,EUV250U,EUV250N EUV250W,EUV300D,EUV300U,EUV300N,EUV300W,EUV400D,EUV400U,EUV400N?? EUV400W
GS UV LAMP
L250US£¬L251US£¬L500US£¬L501US£¬L650US£¬L651US£¬L800US£¬L801US£¬L1100US£¬L1101US£¬L1701US£¬L250MS£¬L251MS£¬L500MS£¬L501MS£¬L650MS£¬L651MS£¬L1000MS£¬L1001MS£¬L1100MS£¬L1101MS£¬L1300MS£¬L1301MS£¬L1501MS£¬L1700MS£¬L1701MS£¬L1900MS£¬L1901MS£¬L2100MS£¬L2101MS£¬L2200MS£¬L2201MS£¬L2401MS£¬L500TS£¬L501TS£¬L650TS£¬L651TS£¬L800FS£¬L801FS£¬L1500PS£¬L1501PS£¬L2200PS£¬L2201PS£¬CTU-160-22-B-AL



UV Cleaning Lamp,UV Cleaning Lamps QGL90U EYE UV LAMP SEN UV LAMP GS UV LAMP
UV Cleaning Lamp,UV Cleaning Lamps QGL90U EYE UV LAMP SEN UV LAMP GS UV LAMP
UV Cleaning Lamp,UV Cleaning Lamps QGL90U EYE UV LAMP SEN UV LAMP GS UV LAMP
UV Cleaning Lamp,UV Cleaning Lamps QGL90U EYE UV LAMP SEN UV LAMP GS UV LAMP
UV?Cleaning?Lamp
UV?Cleaning?Lamp
UV?Cleaning?Lamp
UV?Cleaning?Lamp
