Minipure Specifications for Models

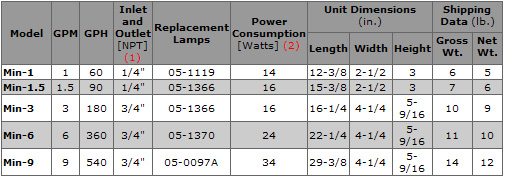

[UV Water Purifier Comparison Chart]
Minipure Ultraviolet Water Purifier uv lamp 05-1119,05-1366,05-1370,05-0097A
(1) Min-1 and Min-1.5 have female pipe threads. Min-3,
Min6 & Min-9 have male pipe threads.
(2) Total power consumption including ballast loss (approximately).
Maximum recommended operating pressure for all purifiers is 100
PSI.
Pressure drop at maximum recommended flow rate is less than 5 PSI.
Consult factory with specific power requirements.
All data shown above reflects 120 Volt 60 Hz operation. Minipure
units are available for operation on public power supplied throughout
the world.
When used at recommended flow rates to disinfect clear water, Minipure
Ultraviolet Water Purifiers provide an ultraviolet dosage in excess
of 30,000 microwatt seconds per square centimeter (μWSec/cm2).
|
|
