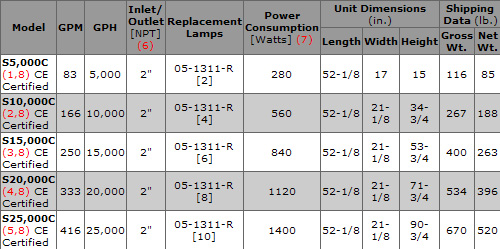

Sanitron Specification for Commercial Models
Sanitron Ultraviolet Water Purifiers Replacement uv lamp 05-1311-R
(2) Two S5,000C¡¯s connected in parallel, 2 inlets and 2 outlets.
(3) Three S5,000C¡¯s connected in parallel, 3 inlets and 3 outlets.
(4) Four S5,000C¡¯s connected in parallel, 4 inlets and 4 outlets.
(5) Five S5,000C¡¯s connected in parallel, 5 inlets and 5 outlets.
(6) All inlets and outlets are male pipe threads.
(7) Total power consumption including ballast loss.
(8) Unit is manufactured in Type 316 Stainless Steel and has dual
removable heads.
Maximum recommended operating pressure for all purifiers is 100 PSI.
Pressure drop at maximum recommended flow rate is less than 5 PSI.
Flow rates are based on Maximum Concentration Levels.
120 Volt and 220 Volt units are standard.
Sanitron is available for operation on public power supplied throughout
the world.
Consult factory with specific power requirements.
Residential & Commercial Systems
Flexibility - components are readily reconfigured to meet changing
flow & process requirements
Independent Monitoring - single lamp chamber design enables output
monitoring of each uv lamp
Standby Capacity - reserve chambers allows shutdown of components
without service interrupt
Special Options - Protective Coating - for seawater & corrosive
environments. Sanitary & Custom Fittings - for system compatibility.
Special Configurations - for TOC and ozone reduction.
|
|
