- treatment capacity up to 4.5 acres
- combines proven technology of aeration and ozonation
- effective in removing algae, aerating water & eliminating odors
- beautifies, oxygenates and revitalizes stagnant lakes and ponds
- chemical-free, non-toxic, which is safe for human and aquatic life
- low power consumption and minimal labor is required
- automatic and provides continuous treatment without operator attention
Aeration
Aerated water has long been associated with pure water. Aeration of
water occurs in nature when natural processes, such as those found
in waterfalls and turbulent streams and rivers, serve to maximize
circulation and absorption of oxygen from the air.
On the other hand, these processes are essentially absent in stagnant
lakes and ponds, where oxygen depletion and stratification deprive
them of their natural beauty and ecologic balance.
In response to this problem, the Eco-Logic Pond & Lake Reclamation
System employs an innovative aeration method that directly introduces
life-giving airborne oxygen to the bottom of the lake or pond. There,
the buoyancy of the rising, minute air bubbles circulate, destratify,
and revitalize the oxygen-depleted water.
In addition, the oxygen displaces dissolved carbon dioxide, which
is vented to the atmosphere. This reduction in available carbon dioxide
in turn reduces the quantity of aquatic weeds and algae that depend
on the carbon dioxide for survival. At the same time, the increase
in dissolved oxygen levels promotes the proliferation and well-being
of fish and other oxygen-dependent aquatic life.
Ozonization
Ozone (O3) is a naturally-occurring, triatomic form of oxygen, having
a much higher oxidation potential than ordinary molecular oxygen (O2).
Ozone¡¯s attributes as a strong oxidizing agent and an effective disinfectant
have led to its use in municipal drinking-water plants since early
in this century. Ozone is used in water treatment to destroy bacteria
and algae and to oxidize organics and toxic chemicals. As a result
of this process, the ozone reverts to ordinary molecular oxygen, leaving
no harmful residual, toxic by-products or chemical build-up to contend
with.

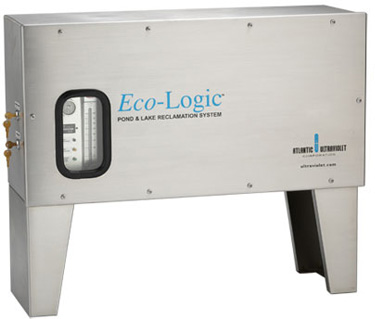

The Eco-Logic Pond & Lake Reclamation System employs a specially-developed
ozone cell to continuously and automatically produce high-purity ozone.
This ozone is then combined with pressurized air prior to its injection
into the bottom of the lake or pond. There, the ozone is absorbed
into the water, along with oxygen from the pressurized air.
This ozone enrichment is employed to accelerate and amplify the beneficial
effects of the dissolved oxygen. In addition, the ozone serves to
oxidize organics and toxins that are resistant to oxygen alone.
The Eco-Logic Pond & Lake Reclamation System is designed not only
to combine the proven technologies of aeration and ozonization, but
also to achieve benefits unavailable from either process alone.
|
|
