UV-technik UV ballast

Electronic power supply series EB-D200

Definition

Compact dimmable electronic ballast with high frequency supply for installation in electrical cabinets, suitable for all low pressure UV-lamps between 40 to 200 W with lamp currents 0.4 to 2.0 Amp.

Applications
optimal for units with 1 to 10 lamps

water disinfection plants

disinfection in air conditioning systems

odour removal units in extractor hoods

Description
foreseen for installation in an electrical cabinet

especially developed for lamps up to 200 W

208 / 230 V AC main voltage supply available,

110 V AC on request (please note the lower wattage!)

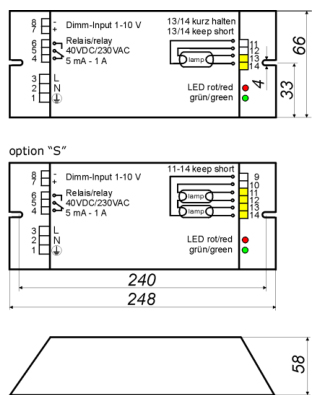

serial connection of 2 identical lamps possible, as long as the power of both lamps does not exceed maximal 200 W (option ¡°S¡±

¨C on request)

safety monitoring systems prevent damages in case of ground fault, short circuit, lamp over voltage, too high lamp current

dimmable approx. 50 to 100 % depending from lamp

potential free fault contacts per lamp for easy monitoring

Technical data

Mains electricity supply

208 to 240 V AC ¡À 10 %



optional 110 V AC ¡À 10 %



Mains frequency

50 to 60 Hz





Operating frequency

25 to 65 kHz





Efficiency

> 90 %





Cos ¦Õ

0.96





Pre heating

yes, (instant start on request)





Ambient temperatur

0 to 40¡ãC

Temperature at tc - point

50¡ãC max. case temperature





Fault warning relays

40 VDC/230 VAC, 5 mA to 1 A





Installation

vertikal

Cable cross-section

0.5 to 1.5 mm2, 15 to 24 AWG





Cable length

5 m





Degree of protection

IP 00

Compliances and approvals

RFI < 30 MHz

EN 55015

Harmonics

EN 61000-3-2

Surge

EN 61000-4-

Burst

EN 55015

CE marking, UL in preparation


currently available types1)

approx. power,
(W)

lamp current,
(A)

max. net current(A)

lamp ?,
(mm)

length of lamp,
(mm)

EB-D 200 A 230 R

160 to 200

1,8 to 2,0

1,0

19

800 to 1200

EB-D 200 B 230 R

200

1,1 to 1,6

1,0

15

300 to 1500

EB-D 200 C 230 R

35 to 150

1,1 to 1,6

0,7

15

300 to 1500

EB-D 200 C 90-250 R

35 to 120

1,1 to 1,6

1,5

15

300 to? 900

EB-D 200 D 230 R

80 to 150

0.8 to 0.88

0,7

15/19

300 to 1500

EB-D 200 E 230 R

40 to 80

0,5 to 0,7

0,4

15

300 to 1500

EB-D 200 F 230 R

40 to 80

0,36 to 0,425

0,4

15

300 to 1500

feasible types

lamp power

lamp current

max. net current

lamp-?

lamp voltage


W

A

A**

mm

V

EB-D 200 / 230 R

40 to 200

0.4 to 2.0

1.0

15 / 19

30 to 150

EB-D 200 / 110 R

40 to 160

0.4 to 2.0

2.0

15 / 19

30 to 150

feasible types*

lamp power

lamp current

max. net current

lamp-?

lamp voltage

(2 lamps)

W

A

A**

mm

V

EB-D 200 / 230 RS

40 to 200

0.4 to 2.0

1.0

15 / 19

30 to 75

EB-D 200 / 110 RS

40 to 160

0.4 to 2.0

2.0

15 / 19

30 to 75

possible lamps: UVI40 ¨C UVI80 T5 / T6; GPHA / GPHHA357 T5 / T6 more on request possible.
